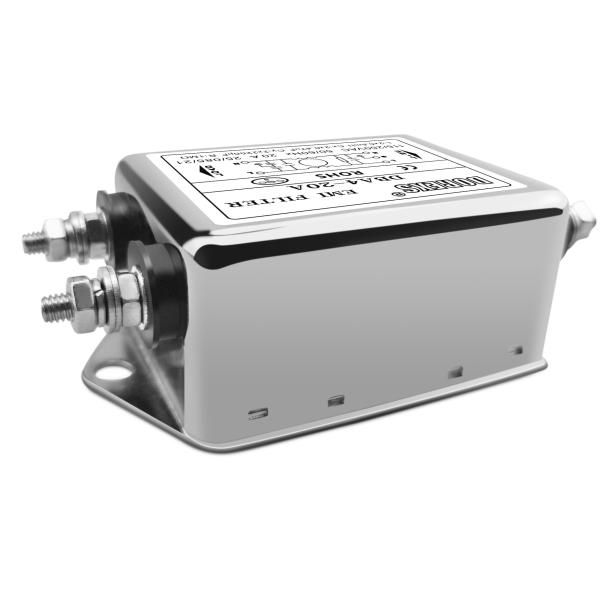

Screw Metal Case EMI Filter Single Phase Filter Low Pass 115/250vac DBA4

Low Pass 115/250vac DBA4 Screw Metal Case EMI Filter Single-Phase Universal Series Power Filter

PRODUCT NAME:

Single Phase Filter 250vac EMI Power Filter Noise Suppressor Power Filter Low Pass 115/250vac DBA4 Screw Metal Case 20~100db

PRODUCT INTRODUCTION

This series of products of our company features small size and low price; there are 3 connection methods for you to choose from: wire/brass bolt/standard 6.3*0.8 shortcut socket, which is easy to use and quick to install. It has relatively good performance in solving high-frequency interference from 1Mhz-30MHZ. They have been widely used in various household appliances, testing equipment, medical equipment, fire protection systems, laser cutting equipment, urban security monitoring systems, stage lighting equipment, power grid control systems, LED lighting drive systems, industrial automation robots and other complex electromagnetic interference Environmental equipment ensures the normal and safe operation of these equipment, effectively reduces equipment failure rates, reduces the interference of high-frequency signals to peripheral equipment and power grids, and protects your EMC conducted radiation testing

PRODUCT FEATURES

■Single-phase AC 220VAC power supply noise filter (universal for AC and DC)
■Rated current: 1A-10A
■Basic type, favorable price, low cost
■Standard 6.3*0.8 blade terminal or bolt connection, simple installation, convenient and fast
■Small size , light weight

ELECTRICAL CHARACTERISTICS

PRODUCT MODEL

model	Rated current	leakage current	Connection method		Product internal circuit diagram	Safety certification	Remark
			enter	output
DBA4-10A	10A	<0.5mA	Bolt/Insert	Bolt/Insert		CUL, CE CQC, ROHS	Support parameters can be customized
DBA4-20A	20A	<0.5mA	Bolt/Insert	Bolt/Insert
DBA4-30A	20A	<0.5mA	Bolt/Insert	Bolt/Insert

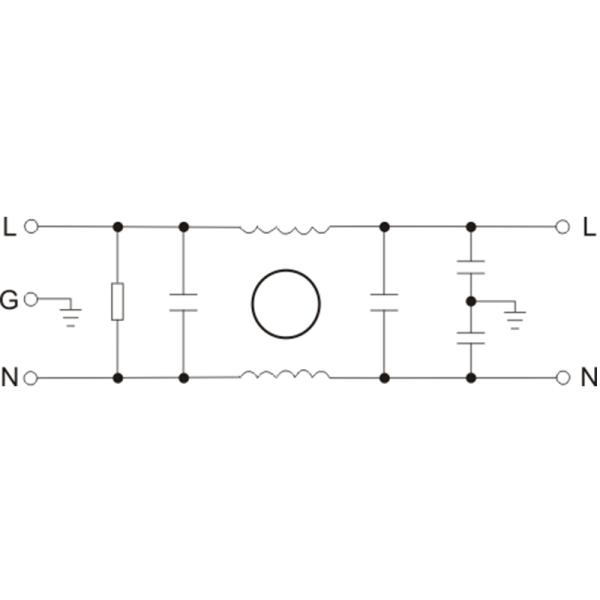

PRODUCT INTERNAL CIRCUIT DIAGRAM

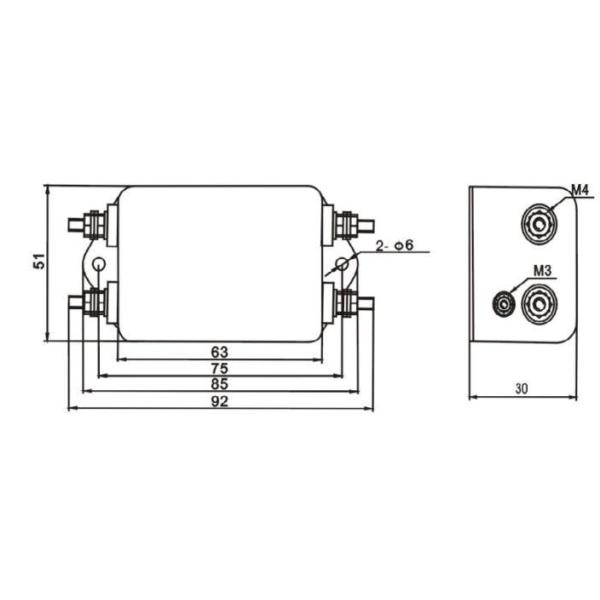

PRODUCT SIZE

INSERTION LOSS

————Common Mode----------Differential Mode

DBA4-20A/DBA4-30A

PRODUCTION PACKAGING

APPLICATION AREA

Widely used in complex electromagnetic interference environments such as various electrical equipment, testing equipment, medical equipment, anime entertainment game consoles, fire protection systems, power equipment, urban security monitoring systems, audio equipment, etc., ensuring the normal working essence of the equipment

​
